Product Details:

Place of Origin                 Fujian, China (Mainland)
Brand Name                     Hoping Power
Model Number                 HQ2200C/HQ3500/HQ5000LN
Output Type                    AC Single Phase
Speed                             1500RPM/1800RPM
Frequency                        50Hz or 60Hz
Rated Power                     1.7KW--4.5KW
Rated Voltage                   110/220,120/240V
Rated Current                   change with the power rate
Certificates                       ISO9001, CE
Product Range                   Gasoline Genset

Detailed Product Desion

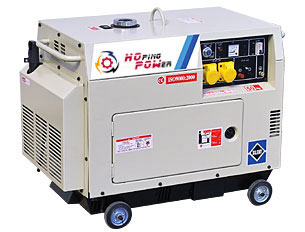

HQ series Air-cooled Diesel Generator Set:

Technical Data:
Generator:
Model: HQ2200C  HQ3500LN  HQ5000LN
Frequency: 50Hz / 60HZ
Rated Power: 1.7/2.0kw, 3/3.2kw, 4.5/4.6kw
Max. Power: 2/2.2kw, 3.5/3.5kw, 4.8/5.0kw
Rated Voltage:110V,115V,120V,220V,230V,240V,110/220V, 115/230V,120/240V
Power Factor: 1%
Adjusting voltage: Brushless, automatic voltage regulator(AVR)
Engine:
Model: R170, R178, R180
Type: Single-cylinder, four-stroke, vertical, air-cooled
Borexstroke(mm):  78x62, 86x70
Rated Power: 2.5kw, 3.68kw, 5.7kw
Starting mode: Manuel/electric
Fuel Tank Capacity: 10L, 14.5L
Lube oil tank:  1.1L, 1.65L
Continuous operation time(h): 55/65, 11, 7
Packing:
N.W: 60kgs, 95kgs, 163kgs
Dimensions: 670x500x565mm, 860x550x725mm, 940x550x725mm
