TWL5401A:
Description:

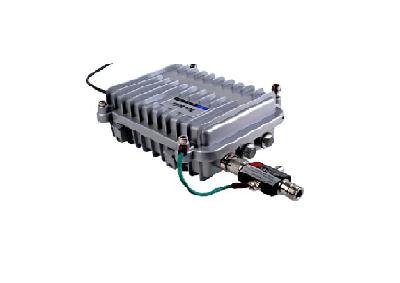

TWL5401A 54M Long-Rnage Wireless AP, with Max transmission range of up to 30km(18 miles), is designed for realizing outdoor far-distance wireless connectivity. With the Aluminum housing which is water and dust proofed, lightning protection, it can be installed in any places outdoor. Specially suitable for individual or work group who often requires outdoor networking. Of course, it could also be used in normal environment, like smart community, big recreation places, airports, big hotels, place of great interests, ore yard, etc. With its high output power and strong penetrating power, this AP enables your networking to be more stable and faster.
Features:
·Compliant with IEEE802.11g, IEEE802.11b, IEEE802.11e (QoS) and IEEE802.11i
·Support Wireless AP mode, Repeater Mode, P2P Mode, PMP Mode, Client Mode
·Highest speed at 54M, 54/48/36/24/18/12/9/6 M multi-speed auto negotiation
·Support TCP/IP, SNMP, CSMA/CA
·Category 5 far-distance power supply technology (PoE, Power over Ethernet)
·Provides1 10/100M auto-negotiation LAN port
·Support xDSL/Cable Modem, Broadband Fixed IP, Broadband Dynamic IP access
·Offer two times higher penetrating power than normal 11b or 11g product, Max out door
transmission distance of 30 KM/18miles (changeable according to antenna and environment)
·Support far distance Web-Management, Operating Interface, easy-configuration guide
·Support 64/128WEP, WPA-PSK encryption protocol
·Support Netscape, IE4.0 or above
·Connectible to outdoor antenna
Data Sheet
|
Standard and protocols supported |
IEEE802.11g、IEEE802.11b、IEEE 802.11e、IEEE 802.11i |
|
Data Security |
WEP、WPA encryption etc. |
|
Frequency Range |
2.4~2.4835GHz |
|
Transmission Rate |
54 Mbps 、48 Mbps 、36 Mbps 、24 Mbps 、18 Mbps、12 Mbps、9 Mbps、6 Mbps、11 Mbps、5.5 Mbps、2 Mbps、1 Mbps |
|
Channels |
13 |
|
Sequence Spread |
DSSS（Direct Sequence Spread Spectrum） |
|
Data Modulation |
BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) |
|
Transmission Type |
CCK、OFDM |
|
Transmission Distance |
Long Transmission range，two times powerful than normal 11b、11g products in door, max out door transmission distance of 30Km(changeable according to antenna and environment) |
|
Antenna Gain |
27dbi (max) |
|
Working Environment |
Working temperature：0ºC ~ 40ºC；Store temperature：-20ºC ~ 90ºC
Working humidity：10% ~ 95% RH Non-condensing |
|
OS supported |
Windows 98 / ME / 2000 / NT / XP Vista 、Linux etc. |
