Product Details:

Place of Origin                          Fujian, China (Mainland)
Brand Name                             Hoping Power
Model Number                          QB60/QB70/QB80/QB90
Theory                                     Centrifugal Pump
Usage                                      Water
Power                                      Electric
Standard or Nonstandard            Standard
Fuel                                         Other
Pressure                                   High Pressure
Product Range                           Water Pump
Certification                              ISO9001, CE

Detailed Product Desion

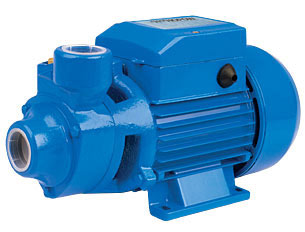

QB series Water Pump
Feature:

The most remarkable character of PERIPHERAL pumps is the impeller containing numerous radial blades in its edge. The particular shape of the blades transfer radial gyration motion rapidly to the fluid on entry to the pump, Since numerous blades helps transfer energy, the fluid pressure increases progressively and gain high pressures relative and its curves are steep particularly.

QB series is relatively simple construction one, no expensive but reliable and safety. The wide range of QB series meets the most different operating requirements such as: Supply water from well, pool and so on, increase the water pressure in the pipe, garden sprinkling or clean washing.
These pumps should be installed in a covered area, protected against the weather.
Performance and working condition for QB Water Pump:

Protection: IP 44
Insulation class F
Max. Pressure 10 bar
Max. Suction lift up to 8 m
Fluid temperature up to +80
Max. ambient temperature up to +40C
