Product Details:

Place of Origin                              Fujian, China (Mainland)
Brand Name                                  HOPING POWER
Model Number                              GF1/GF2/GF3/GF4
Output Type                                 AC Three Phase
Speed                                         1500rpm / 1800rpm
Frequency                                    50Hz / 60Hz
Rated Power                                 5kw-1000kw
Rated Voltage                               110V,220V,380V,etc
Certification                                 CE,EPA, ISO9001
Start Method                                Automatic, with ATS
Products Range                            Generator set

Detailed Product Desion

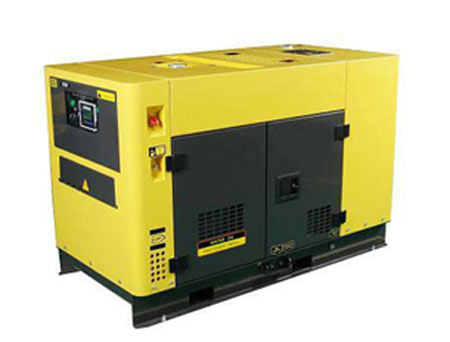

Water-cooled Diesel Power Generator Set
Features:
-Rated output: 5kw to 1000kw (6.3kva to 1250kva)
-Rated voltage: 400/230, 380/220 and 220/120V
-Rated frequency: 50/60Hz
-Power factor: 0.8
Technical Data:
Engine: Perkins, Deutz, Cummins, New Holland, Daewoo, Yangdong, Weichai, Styer, etc
-Cooling method: closed water cooling
-Starting method: electric start
-Rated speed: 1500/1800rpm
-Noise level: 64db-80db, 7 meter away
Alternator:
-Brand: Stamford or Leroy somer or normal TFW brushless alternator
-Rated output: 5kw to 1000kw (6.3kva to 1250kva)
-Rated voltage: 400/230V
-Rated frequency: 50/60Hz
-Power factor:0.8
-Phase: 3-phase, 4-wire
-Connection: Y or other type connection
-Rated Speed: 1500rpm/1800rpm
-Excitation: harmonic excitation or phase compound or brushless
-Voltage regulation: automatic
-1.0% voltage regulation (max.) in static conditions
-Protection class: IP22 or IP23
Control Panel:
The generator control panel is manufactured locally,
The panel provide with:
-Standard engine instrumentation
-Voltmeter with selector switch
-Ammeter with selector switch
-Frequency meter
-Current transformers
-Instrument fuses duly wired and ferruled
-MCB of suitable rating with overload and short circuit protection.
-With AMF control panel with ATS (automatic transfer system)
-With EPA certification
Guarantee:
Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, HOPING POWER will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, we provide cost spare parts maintenance of alternator.
