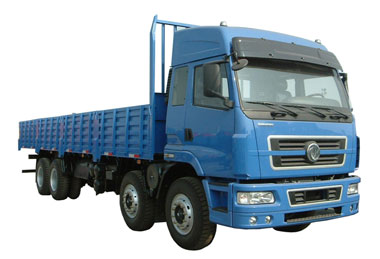

the specification of “dongfeng” brand truck

Model: LZ1360M1

Engine                                    Model : YC6M280-20;

Manufacturer: Guangxi Yuchai Machinery Co., Ltd.

Vertical, in-line, 6-cylinder, water-cooled, 4- stroke，turbocharger   inter cooled.

                                                Number of Cylinder: 6

                                                Displacement (L)    : 9.839

                                                Bore ´ Stroke(mm) : Æ120 ´145

                                                Power/Speed (kw/r/m) : 206/2100

                                                Max. Torque /Speed (N.m/r/m): 1180/≤1600

Min SFC at full load (g/kw.h) : ≤ 193

Emission standard:  Meet Euro II Standard

Clutch                                     Single disk

Diameter of disk (mm) : Æ 430

Transmission                         Type:  ZF 9 Speed gear box, Manual operating ,9-speed forward , 1-speed reverse

Ratio : 13.04  8.48   6.04    4.30    3.43   2.47  1.89   1.28  1.00  11.77

Rear Axle                               Final gear ratio: 4.44

Front axle & front wheel     Front wheel camber angle: 1°,Main pin rear  camber angle   : 2 °

orientation                              inner camber angle: 3°,  toe-in: 0~4mm，Front wheel sideslip: ≤±5mm / m

Steering                                  Over-all recirculation ball of redirector. Maximum turning angle:

                                                 inner wheel 48°, outer wheel 36°

Suppention                             Front  axle No.1: 5; Front  axle No.2: 6 spring leaves; Rear axle:11 spring leaves;

Wheels& Tyres                      8.50V; 11.00 - 20

Driver’s cab                           M43 Floating cabin with air-conditioner, radio and casstte

Dimensions in mm                 Wheel base (mm): 1700 + 4525+1350

Track (mm) Front wheel/Rear wheel(mm) : 2020/1860;

Overhang (front/rear) (mm) : 1380/ 3065

Overall (L x W x H) (mm): 11995  x 2470 x 3390

Cargo body dimensions: ( L x W x H) (mm):9600 x 2300 x 800

Weight in Kg                          Total weight: 35900

Pay load ( kg) : 23000;  Curb weight(kg) :12900

Performance                         Max. Speed (km/h): 93

Grade ability (%) : >30

Min. Turning diameter (m):≤ 24

Max.Braking distance(m)(speed 30km/h) : ≤10

Angle of approach/departure: 19⁰ /11⁰

Min. Ground clearance (mm): 275
