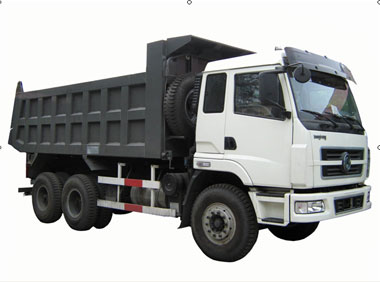

the specification of “dongfeng” dump truck

Model: LZ3330m1

Engine                                    Model : YC6M375-20

Manufacturer: Guangxi Yuchai Machinery Co., Ltd.

Vertical, in-line, 6-cylinder, water-cooled, 4- stroke，turbocharger   inter cooled.

                                                Number of Cylinder: 6

                                                Displacement (L)    : 9.839

                                                Bore ´ Stroke(mm) : Æ120 ´145

                                                Power/Speed (kw/r/m) : 276/2100

                                                Max. Torque /Speed (N.m/r/m): 1550/≤1600

Min SFC at full load (g/kw.h) : ≤ 193

Clutch                                     Single plate.Diameter of disk (mm) : Æ 430

Transmission                         Fuller 9 speed gear box; 9-speed forward , 1-speed reverse

Ratio : 13.04    8.48     6.04     4.39     3.43     2.47     1.76     1.28     1.00     11.77(R)

Rear Axle : Main drive ratio: 5.73;

Suspension system                 Front suspension: non-individual suspension, rear suspension equation   suspension.

                                                Front axle:11 spring leaves; Rear  axle:12 spring leaves

Steering system                      Motive – POWER STEERING

Braking system                       Service brake: dual circuit air braking system;

Parking brake: pneumatic controlled, energy-storage spring brake chamber acts on the rear brake.

 Tyres                                     12.00 – 20

Driver’s cab                           Forward control torsion bar tilt cab with M41 cabin with single sleep with air-Conditioner,radio and cassette。

Dimensions in mm                 Wheel base (mm): 3650 + 1350

Track (mm) Front wheel/Rear wheel(mm) : 2020/1860;

Overhang (front/rear) (mm) : 1485/1675

Overall (L x W x H) (mm): 8450 x 2496 x 3370

Cargo body: Volvo style; Cargo bottom thichness: 14mm

Cargo thickness: 10mm;

Cargo body dimensions(L x W x H) (mm): 5600 x 2300 x1300

Weight in Kg                          Payload (kg): 18000;

Curb weight(kg) / Gross weight (kg): 15500/335000;

Performance                         Max. Speed (km/h): ≤75;

Gradeability (%) : ≥30

Fuel Consumption (L/100km) : 32;

Min. Turning diameter (m): ≤20;

Max.Braking distance(m)(speed 30km/h) : ≤10

Angle of approach/departure: 25⁰ /45⁰

Min. Ground clearance (mm): 295
